PROJECT SPOTLIGHT

Project Overview

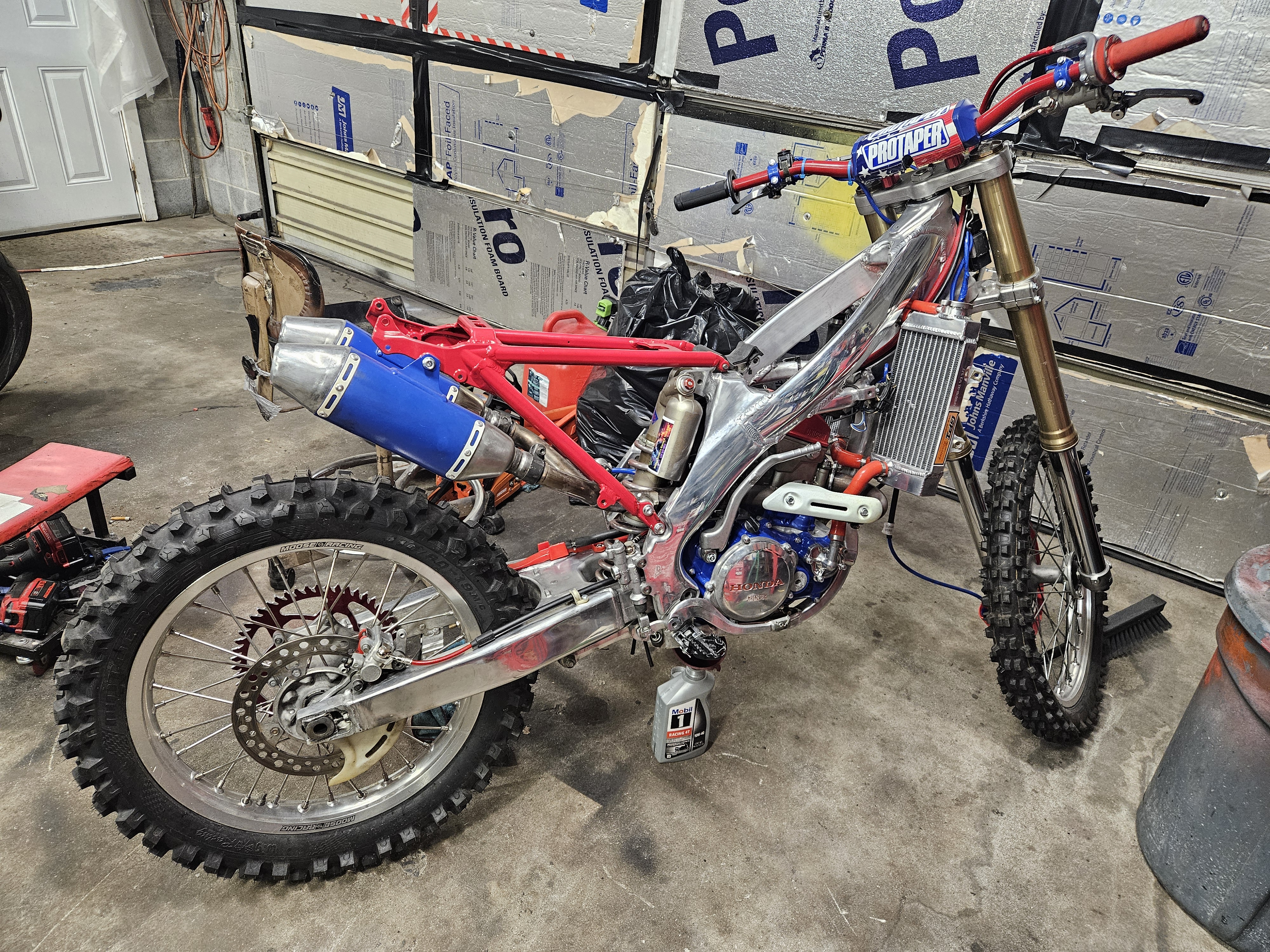

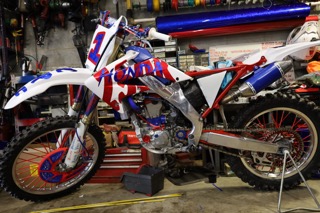

This 2006 Honda CRF250R came to us in need of a complete rebuild. The customer wanted to restore it to better-than-new condition with performance upgrades and custom graphics.

Work Performed

• Complete engine rebuild with performance components
• Suspension rebuild and revalving
• Custom ECU tune for improved throttle response
• New wheels with custom red anodized hubs and spokes
• Custom graphics kit and seat cover
• Upgraded braking system

Results

The bike now produces significantly more power than stock while maintaining excellent reliability. The suspension is tailored specifically to the rider's weight and riding style. The customer was thrilled with the results and has been enjoying the bike at local tracks.

Project Overview

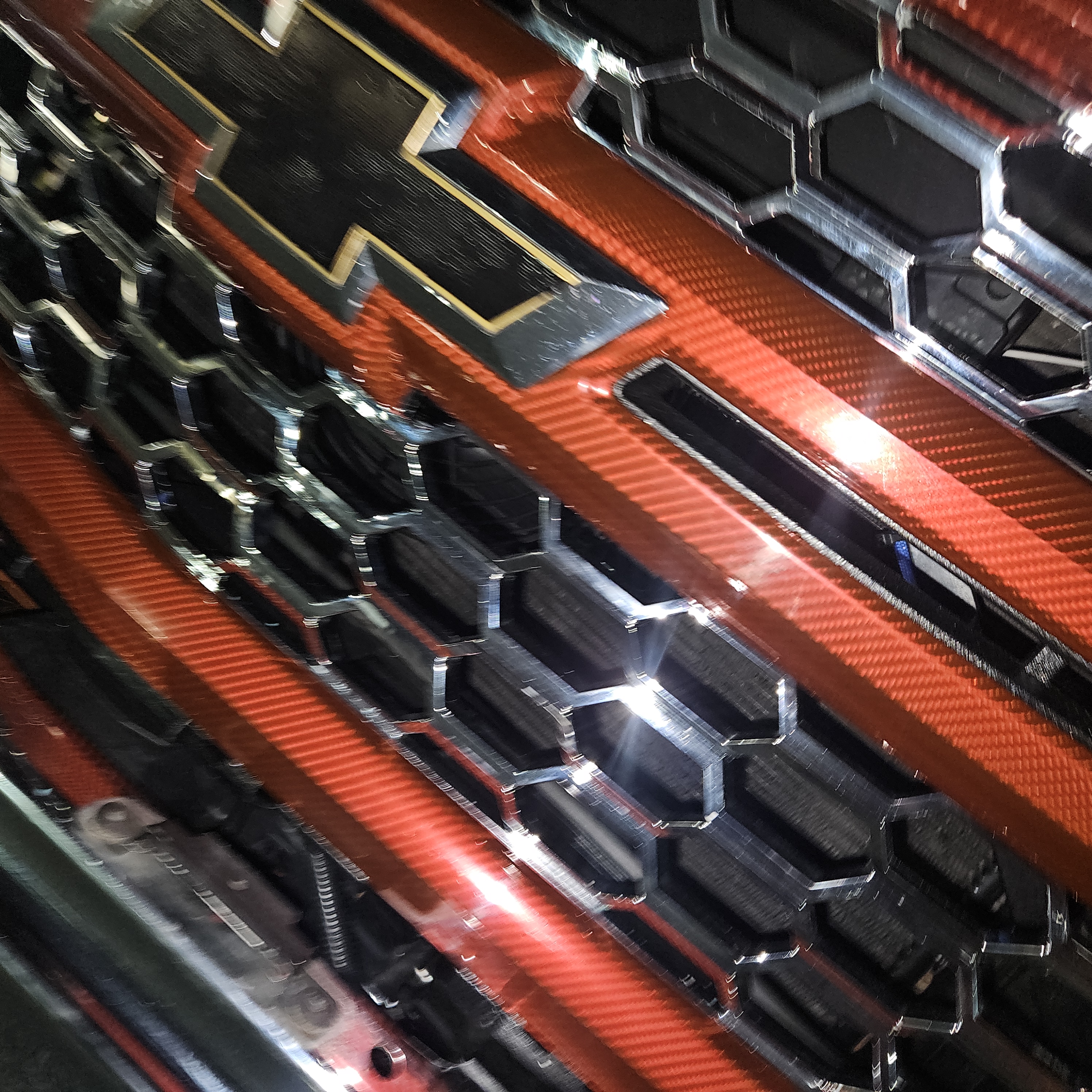

This is our 2014 Chevrolet Silverado 1500 shop truck - a complete performance build showcasing our capabilities. What started as a stock 4.3L V6 has been transformed into a 455hp beast with comprehensive modifications touching every aspect of the vehicle.

Engine & Performance Modifications

• AFM/DOD Delete - Removed Active Fuel Management for reliability
• L83 Lifters - Upgraded valve train components
• Scoggin-Dickey Stage 1 Cam - Performance camshaft upgrade
• VVT Deleted - Variable Valve Timing removal for performance
• TRQ High Performance Coils - Enhanced ignition system
• Taylor 10mm Wires - High-performance spark plug wires

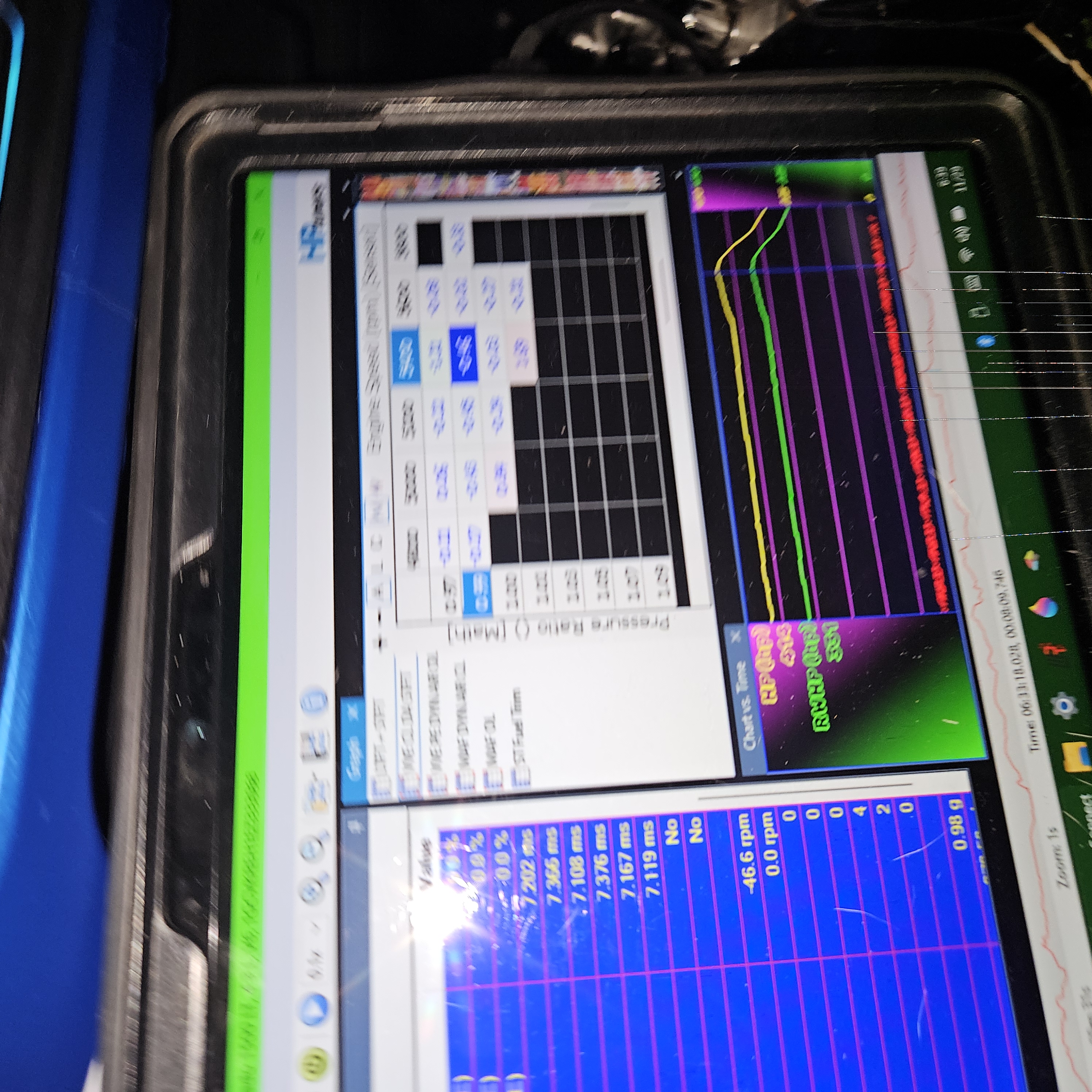

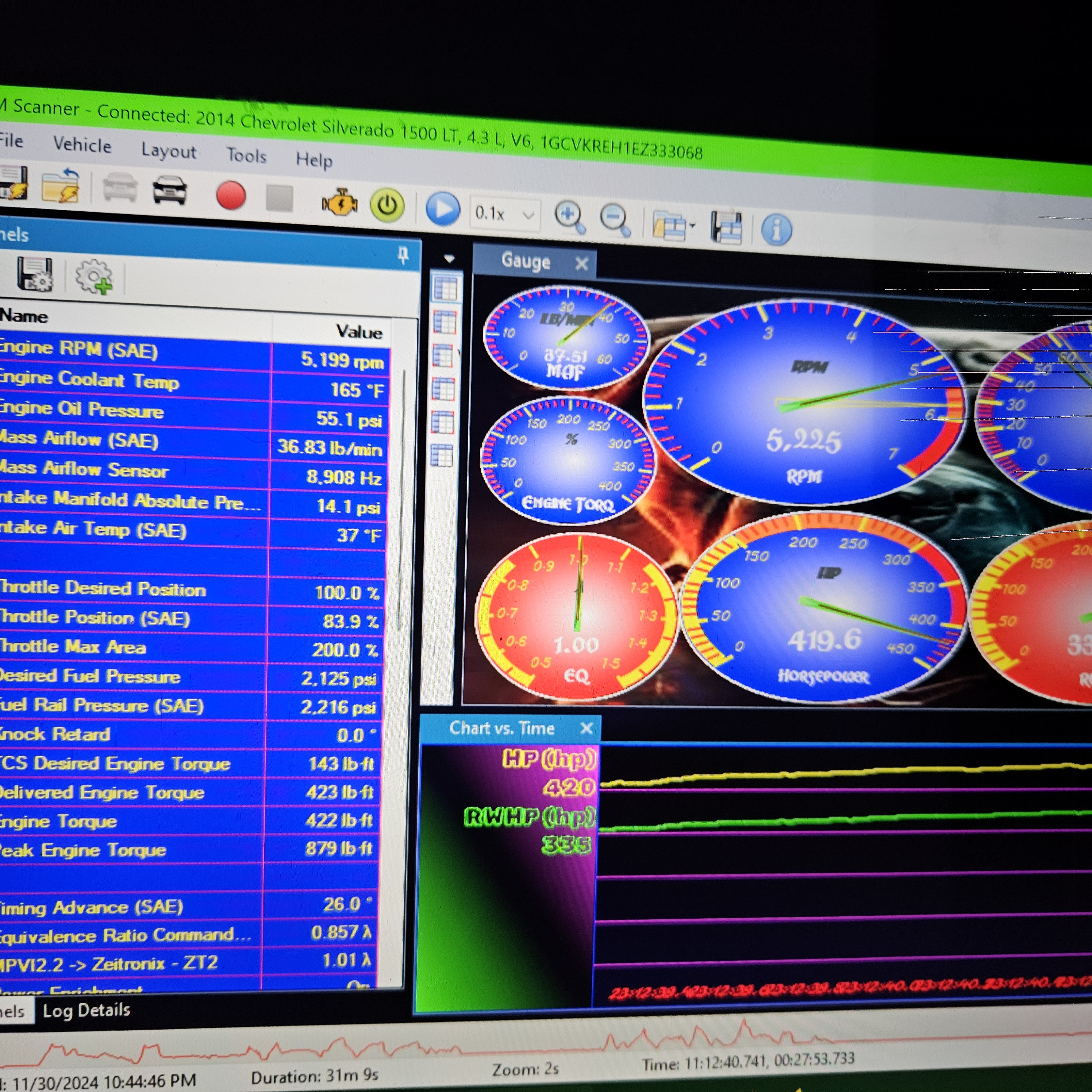

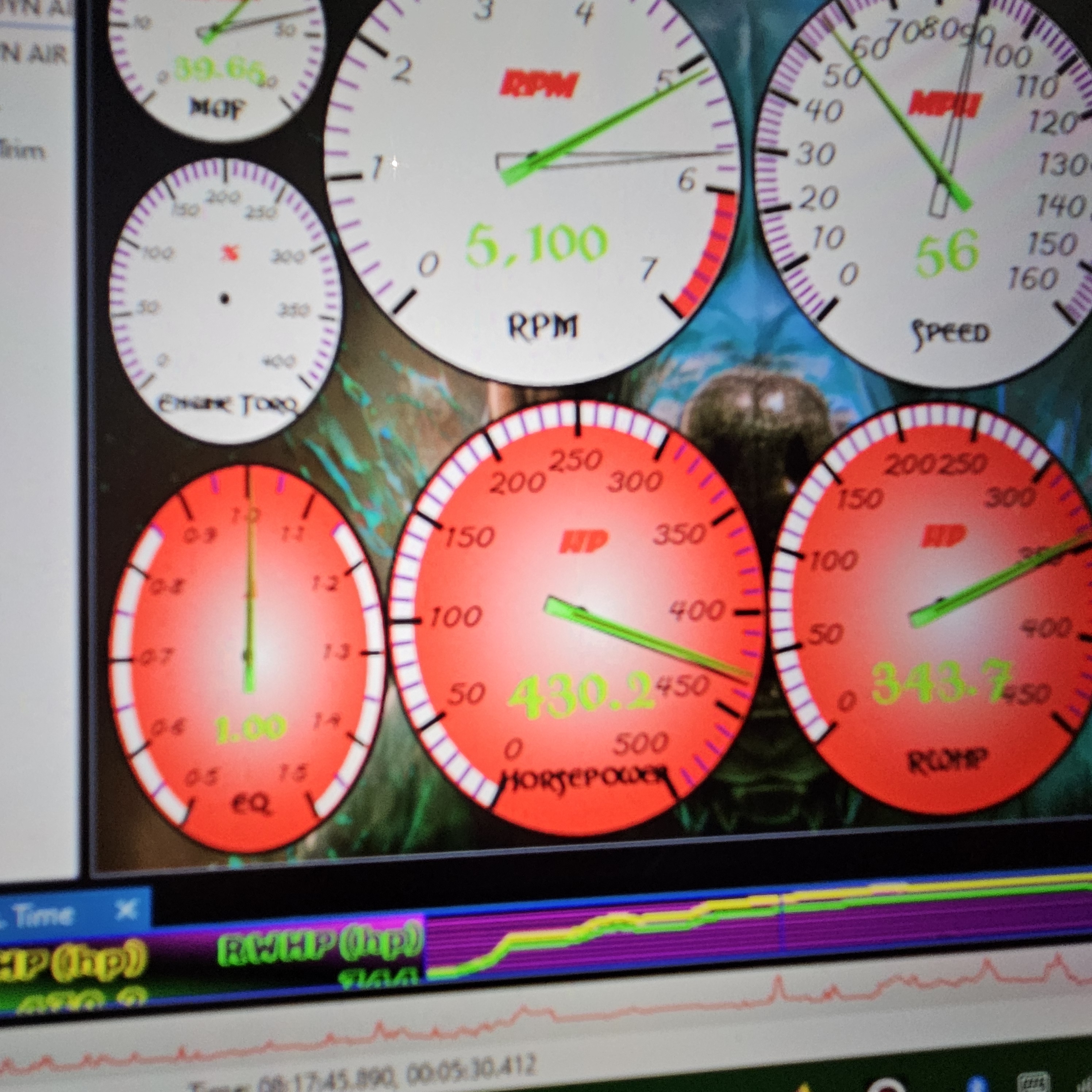

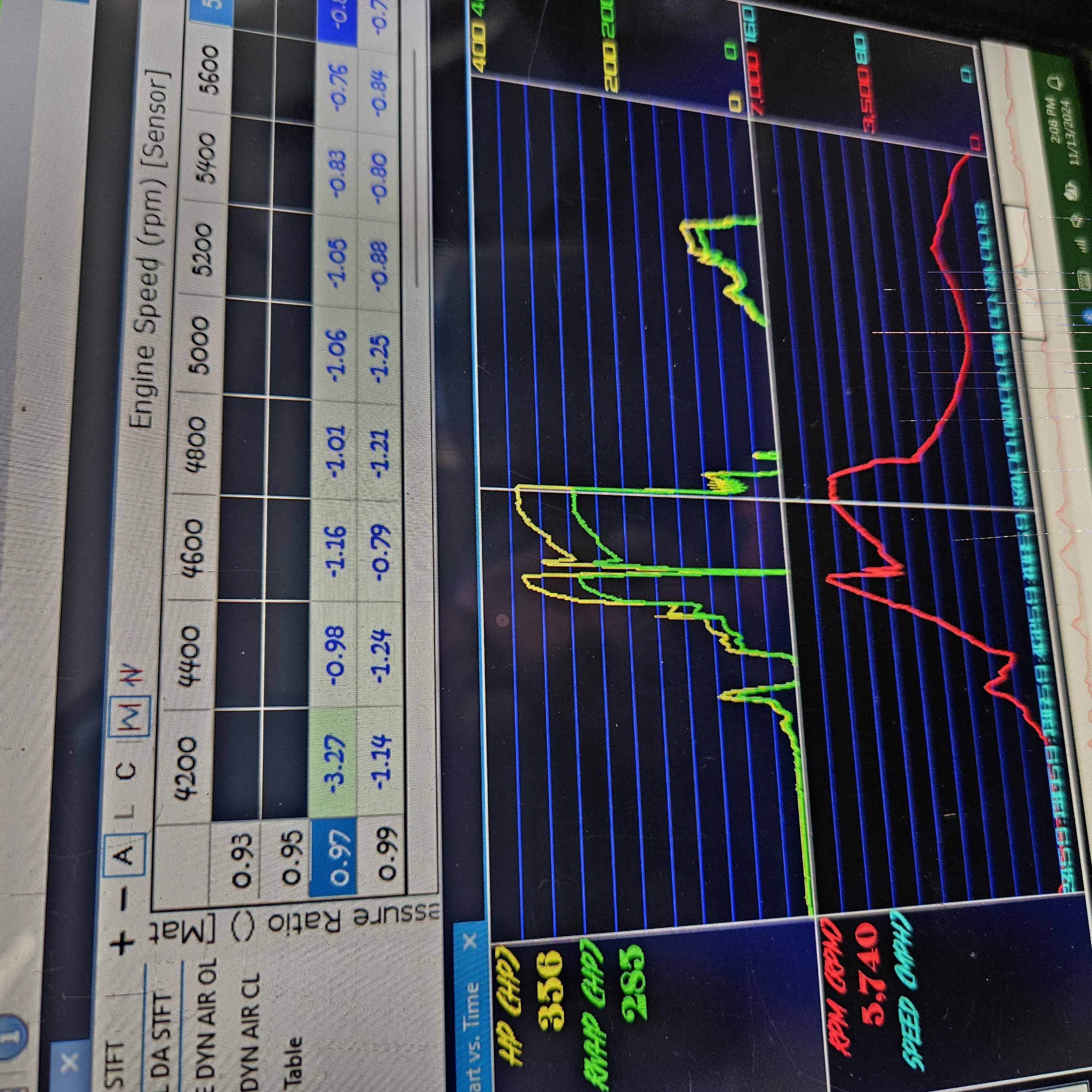

• Custom Tuned In-House Using HP Tuners - Professional ECU calibration

Cooling System Upgrades

• GPI Racing 3 Core All Aluminum Radiator
• Custom AN8 High Pressure Oil & Trans Cooler Lines - In-house fabricated
• Be Cool 40k Trans Cooler
• 160 Degree Thermostat
• High Flow Water Pump
• ITC Billet Thermostat Bypass Plate

Exhaust & Intake System

• JBA Shorty Headers
• 2.5" Flowmaster High Flow Cats
• 3" Exhaust System - Back to Flowmaster Series 44
• Dual 2.5" Outlets
• Bulldog Brother's Racing Custom Forced Air Intake Box - With K&N Filter

Drivetrain Upgrades

• Performance Driveline Custom Built Aluminum Driveshaft
• Summit Racing Chromoly Rear Axles
• TRQ Drilled/Slotted Rotors - All around

Lighting Package

• 4 Torchbeam 33k Lumen LED Headlights + 2 Fog Lights
• LED Marker Lights & Custom Smoked Taillights
• Roof Mounted: 2x 54" Ni-Lite Curved Light Bars + 6x 8" Bars
• Ground Level: 6x 8" Ni-Lite Floods + 2 Auxbeam Reverse Lights
• Grill: 8 Rock Pods with Dream Cycle (250+ light modes)
• WineCo Warning Light Bar

Electrical System

• Precision Power 300amp Alternator
• 2 Isolated Auxiliary Batteries
• RUGCEL TANK 13,500lb Winch

Audio System

• Infinity Reference Dash Speakers
• Kicker 3-Way 6x9's - Front doors
• Rockford Fosgate 6.5" Component System - Rear doors
• Lanzar Vector 2000w 4ch MOSFET Amp
• Subwoofers: 2 Lanzar Max 12's + 12" Solo Baric L7
• PPI Atom A1800.1D Monoblock Amp
• Planet Audio 10 Farad Hybrid Lightning Cap
• LS2 Line Output Controller

Exterior Styling

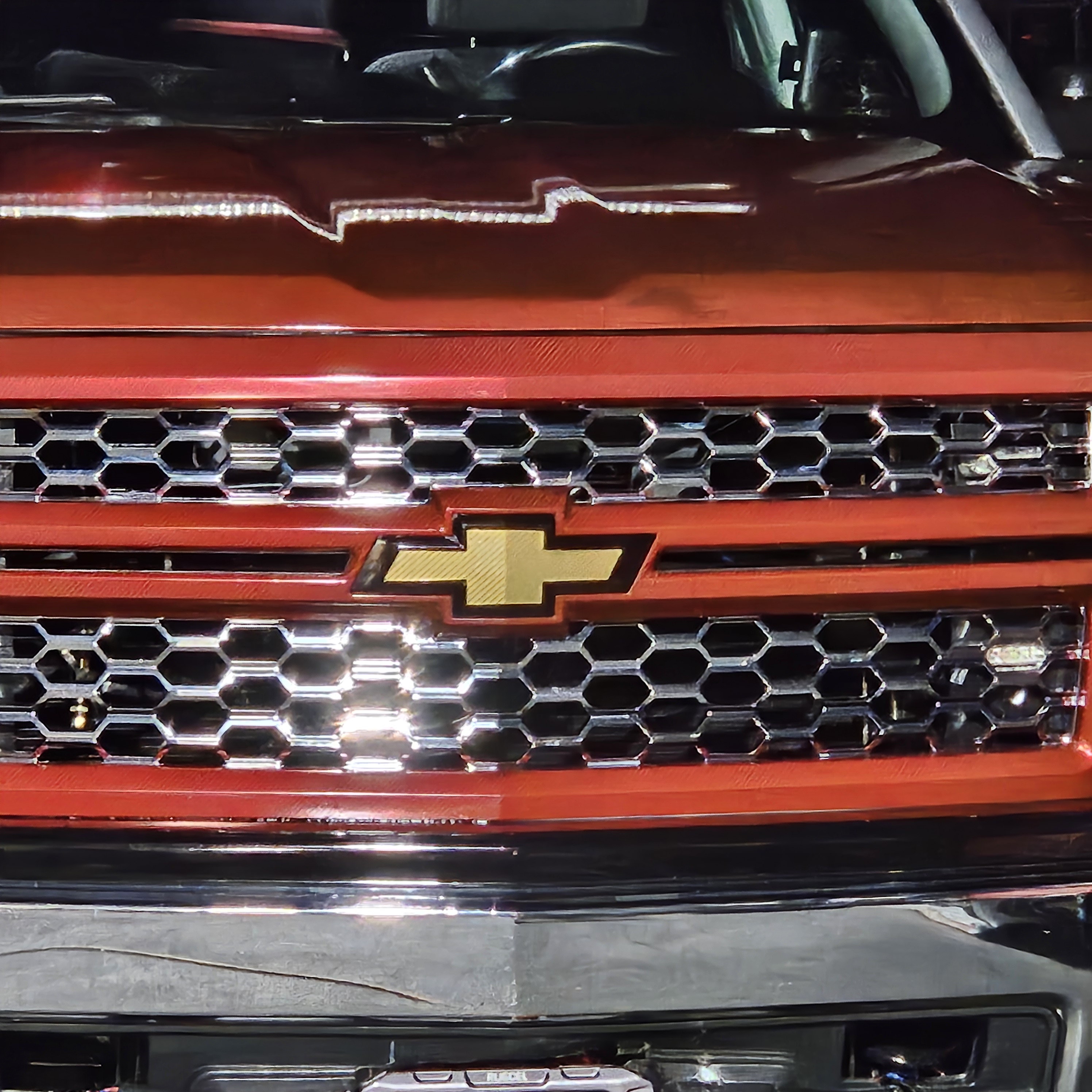

• Hood & Grille: Demon Red Carbon Fiber Wrap
• Body: Black Rainbow Color Shift Wrap

Project Overview

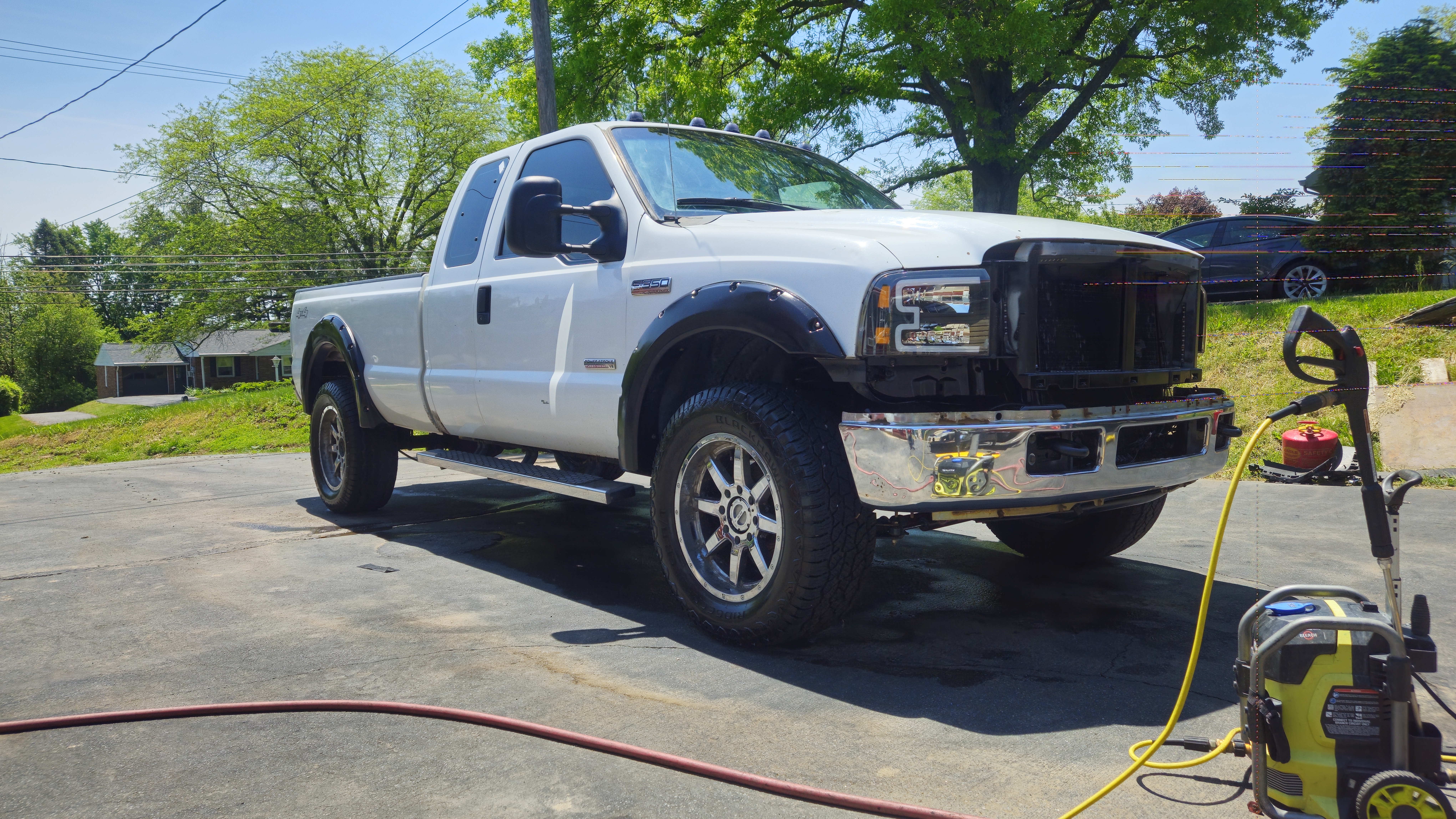

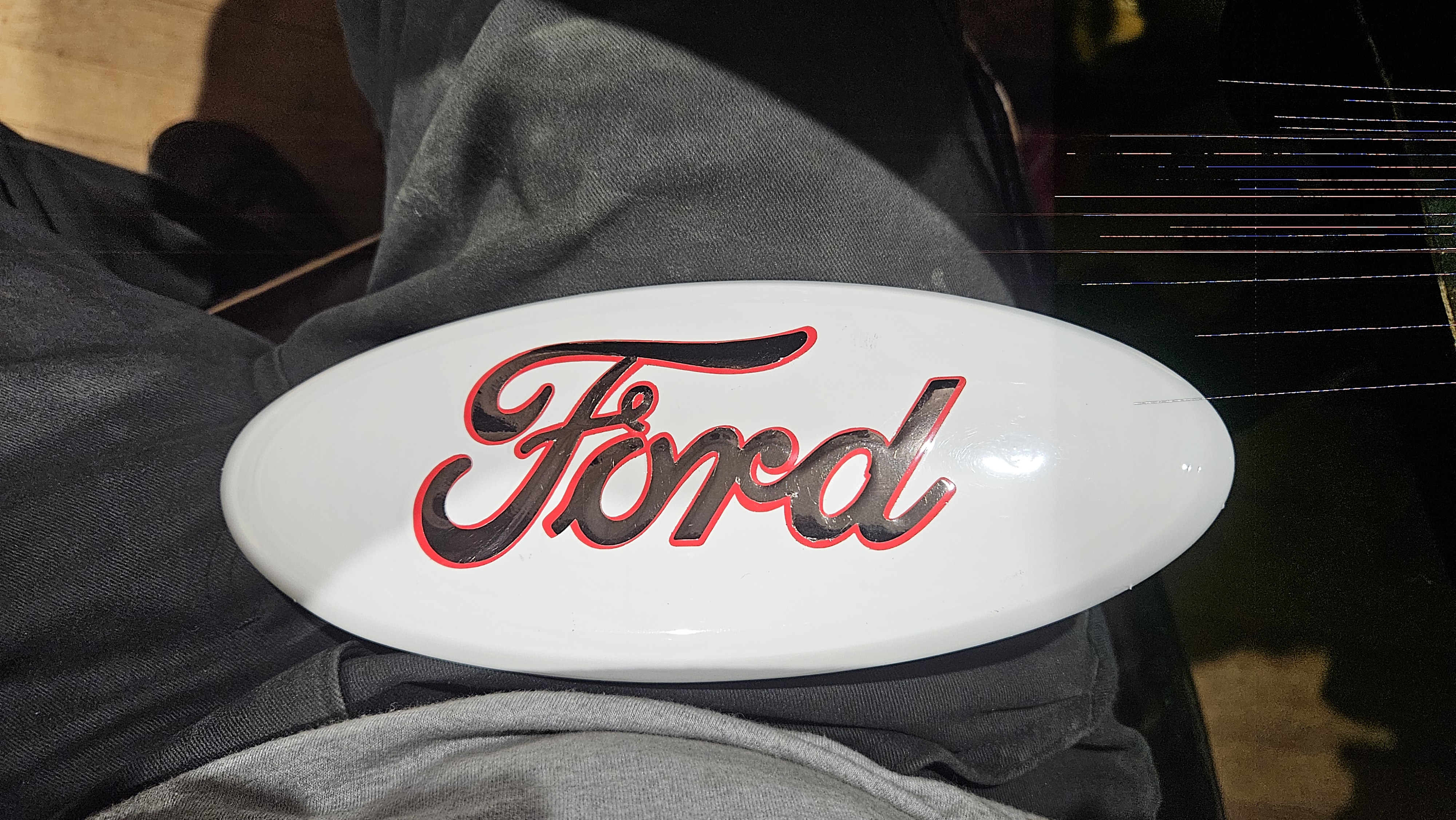

This 2005 Ford F350 Superduty 6.0 Powerstroke came to us for a complete performance transformation. The goal was to build a reliable yet powerful truck that could handle both daily driving and heavy-duty work while producing impressive power numbers.

Performance Modifications

• MRBP Full 5" Exhaust with Cat Delete - Maximum flow and aggressive sound
• 4" Downpipe - Improved exhaust flow and reduced back pressure
• Bulldog Brother's Custom Free Flow Air Intake System - Increased air flow and filtration
• EGR Delete - Improved reliability and performance
• Upgraded HPOP, Standpipes, Dummy plugs, nipple cups and seals - Enhanced oil system reliability
• Turbo Oil Feed and drain Tubes - Improved turbo lubrication
• 58v F.I.C.M. - Upgraded fuel injection control module
• Stage 2 Injectors - Increased fuel delivery for more power

Suspension Upgrades

• Skyjacker Blackmaxx shocks all around - Improved ride quality and control
• Superlift Shadow Dual Steering Stabilizer - Enhanced steering stability
• Mile Marker manual hub conversion - Reliable 4WD engagement
• Complete Steering Rebuild - Tight, responsive steering feel
• TRQ Drilled Slotted Rotors, calipers, and hubs with ceramic pads - Improved braking performance

Wheels & Tires

• 20"x12.5" Fuel Rims - Aggressive stance and style
• Rudge Crawler A/T Tires - All-terrain capability with street manners

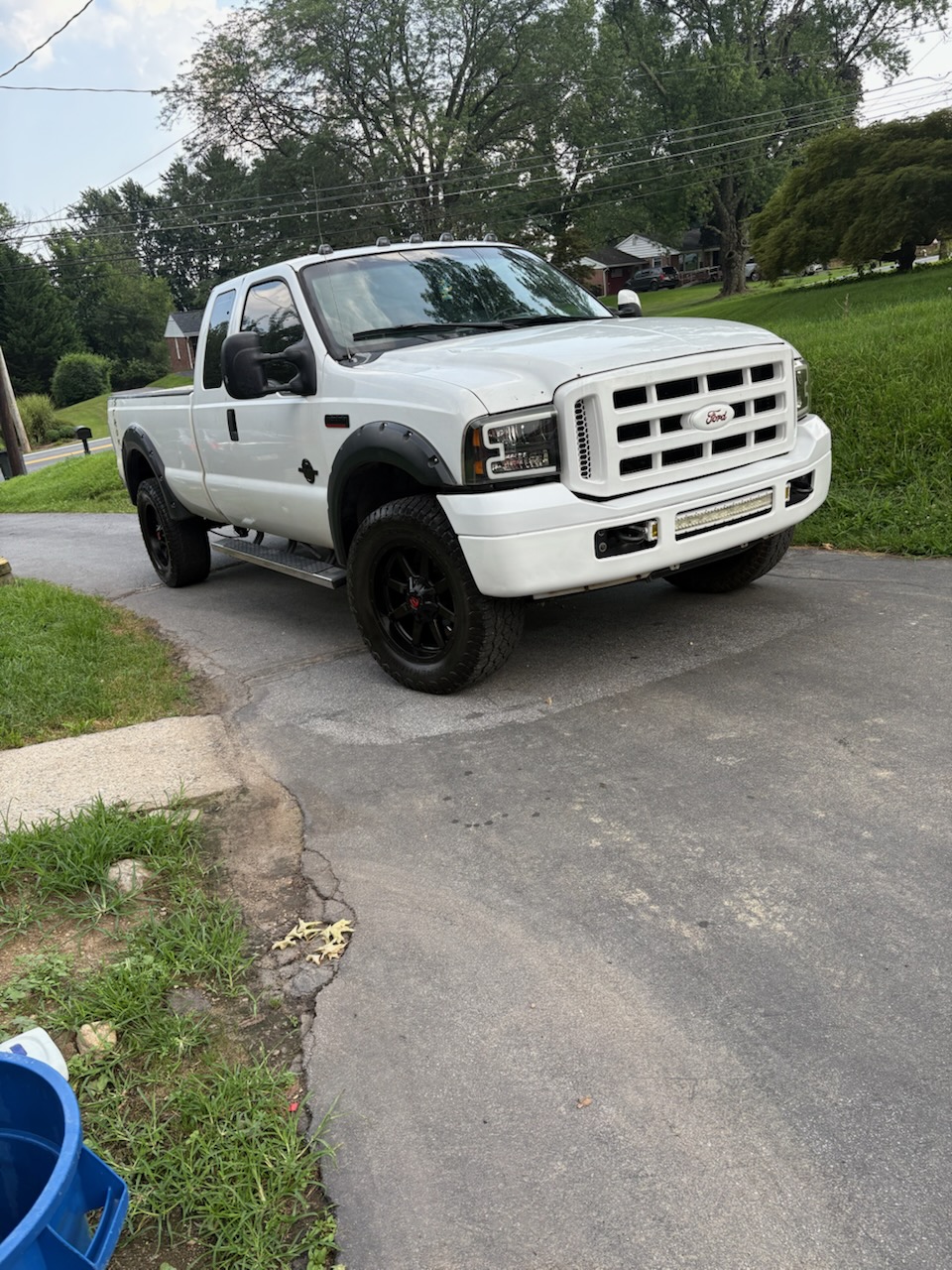

Lighting Upgrades

• Aftermarket headlights with 33,000Lm Torchbeam bulbs and LED turn signal bulbs
• Smoked Clearance lights with Auxbeam high intensity LEDs
• Clear LED taillights with Torchbeam 15,000 Lm reverse lights
• 12" Flood bar added under hitch for backing up
• 36" Curved Flood Bar in center section of front bumper
• Nilight Under glow behind grill, under truck, and in cab

Audio System

• Soundstream Bluetooth head unit with rear camera
• Bazooka mono Amp powering 2 Cadence 12" subs
• Custom bass tube enclosures - Professional installation and tuning

Project Overview

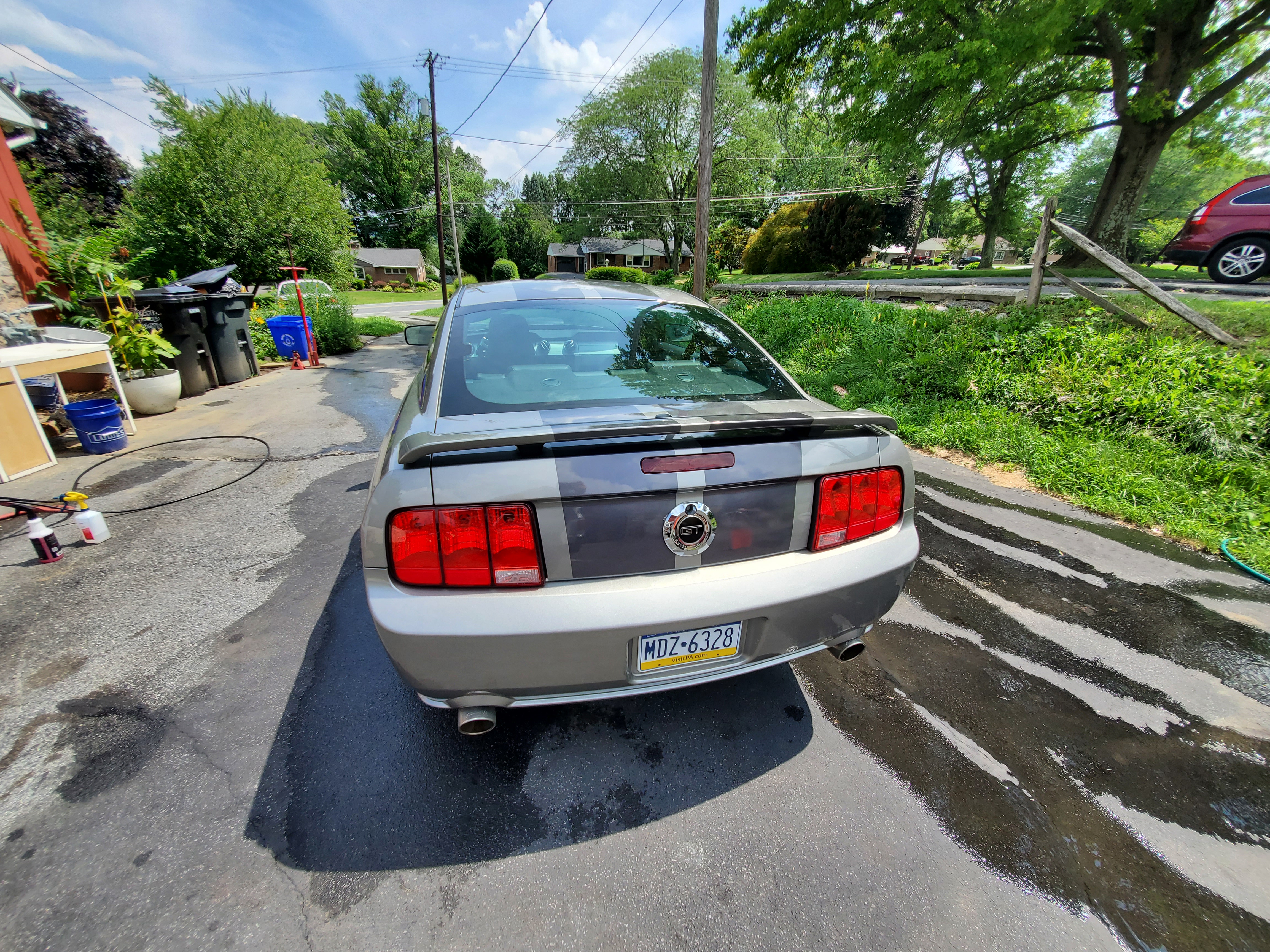

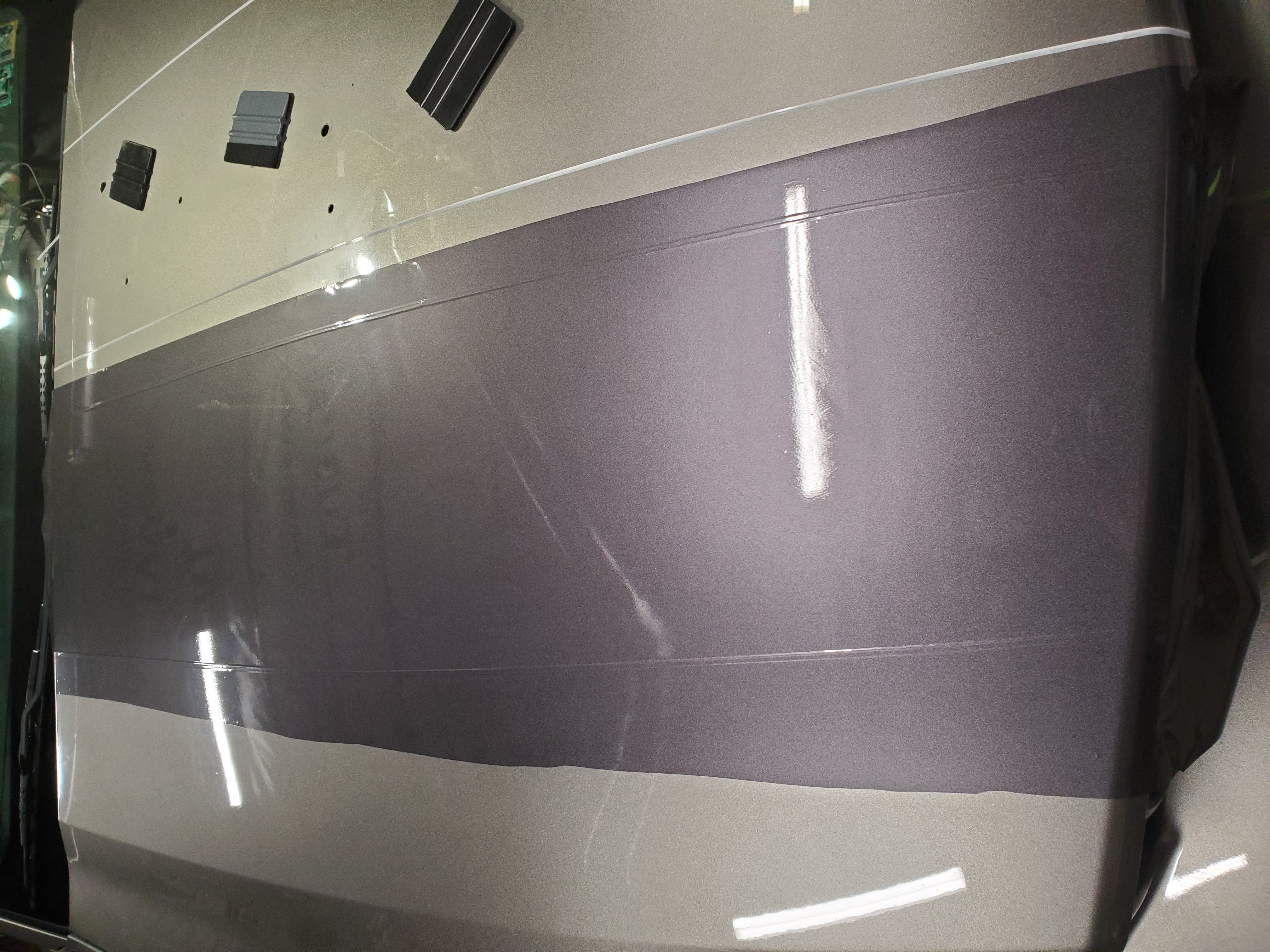

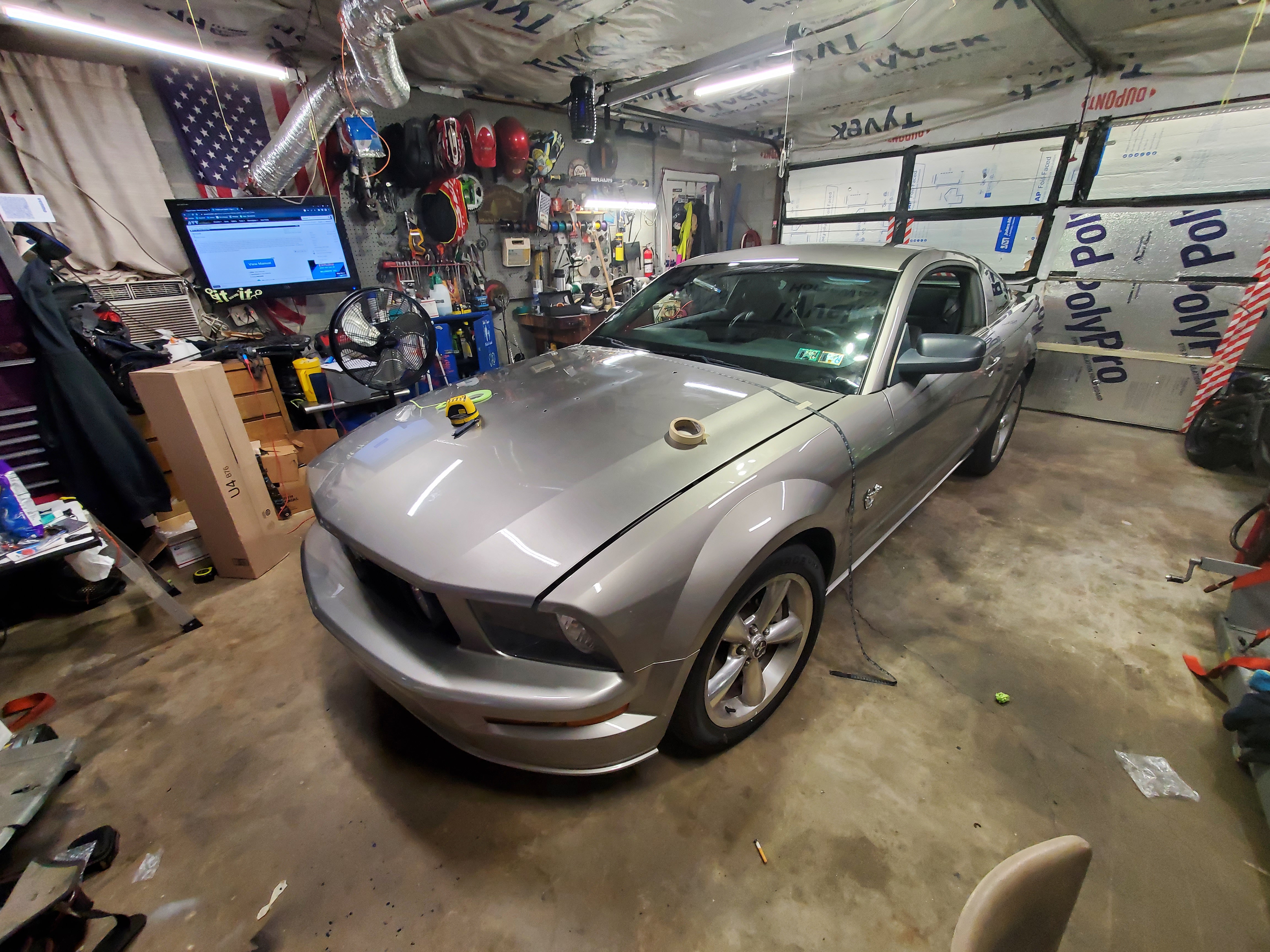

This 2009 Ford Mustang 45th Anniversary Edition came to us for a custom vinyl wrap project that would enhance its already iconic appearance. The customer wanted racing stripes that would run the full length of the car, but this seemingly simple request turned into one of our most technically challenging vinyl projects.

The Challenge

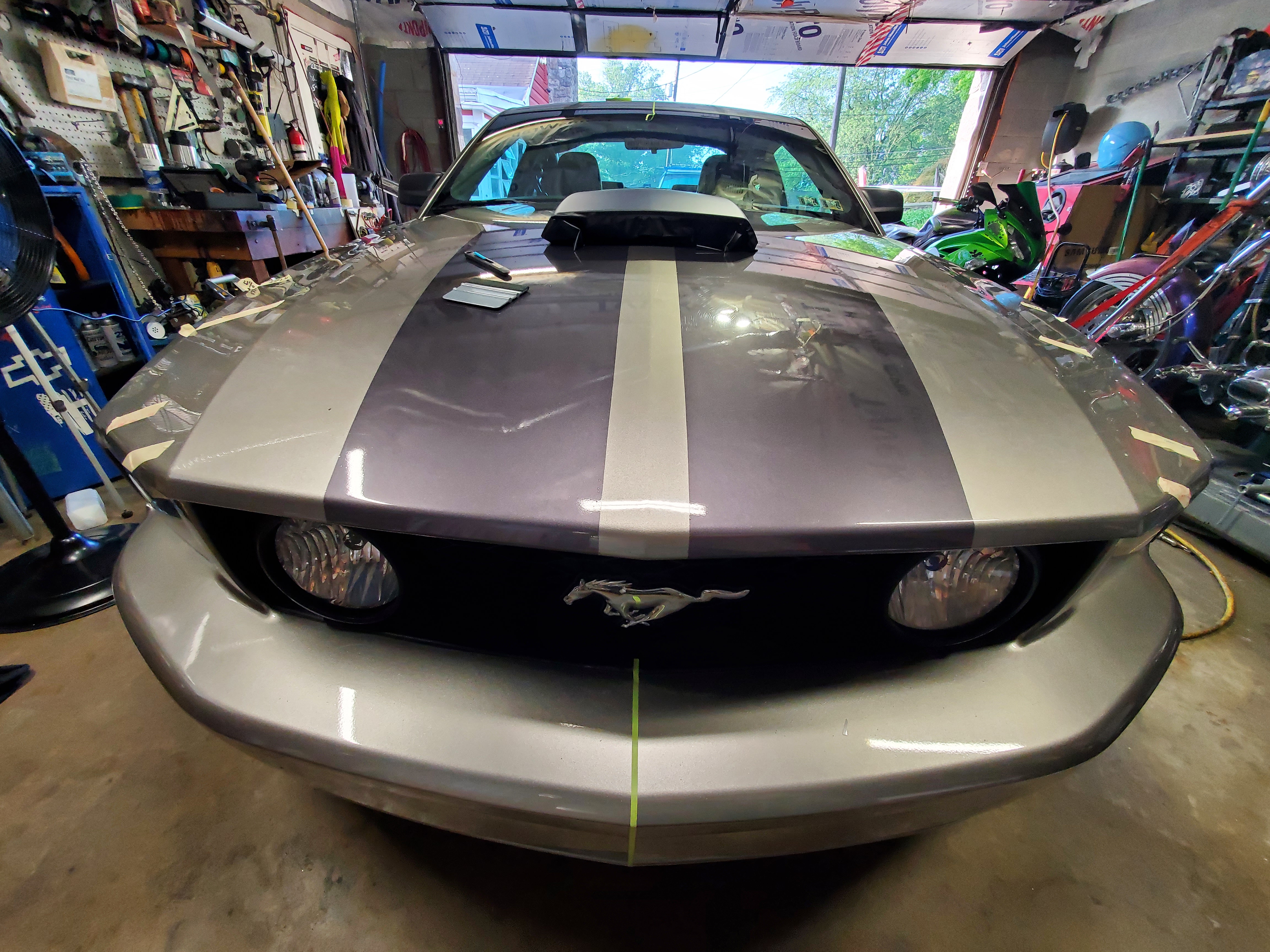

The width of the hood, roof, and decklid on this Mustang varied significantly, creating a unique challenge. We needed to maintain the body lines while ensuring the stripes remained uniform and visually consistent across all three surfaces. This required precise planning and expert execution.

Materials Used

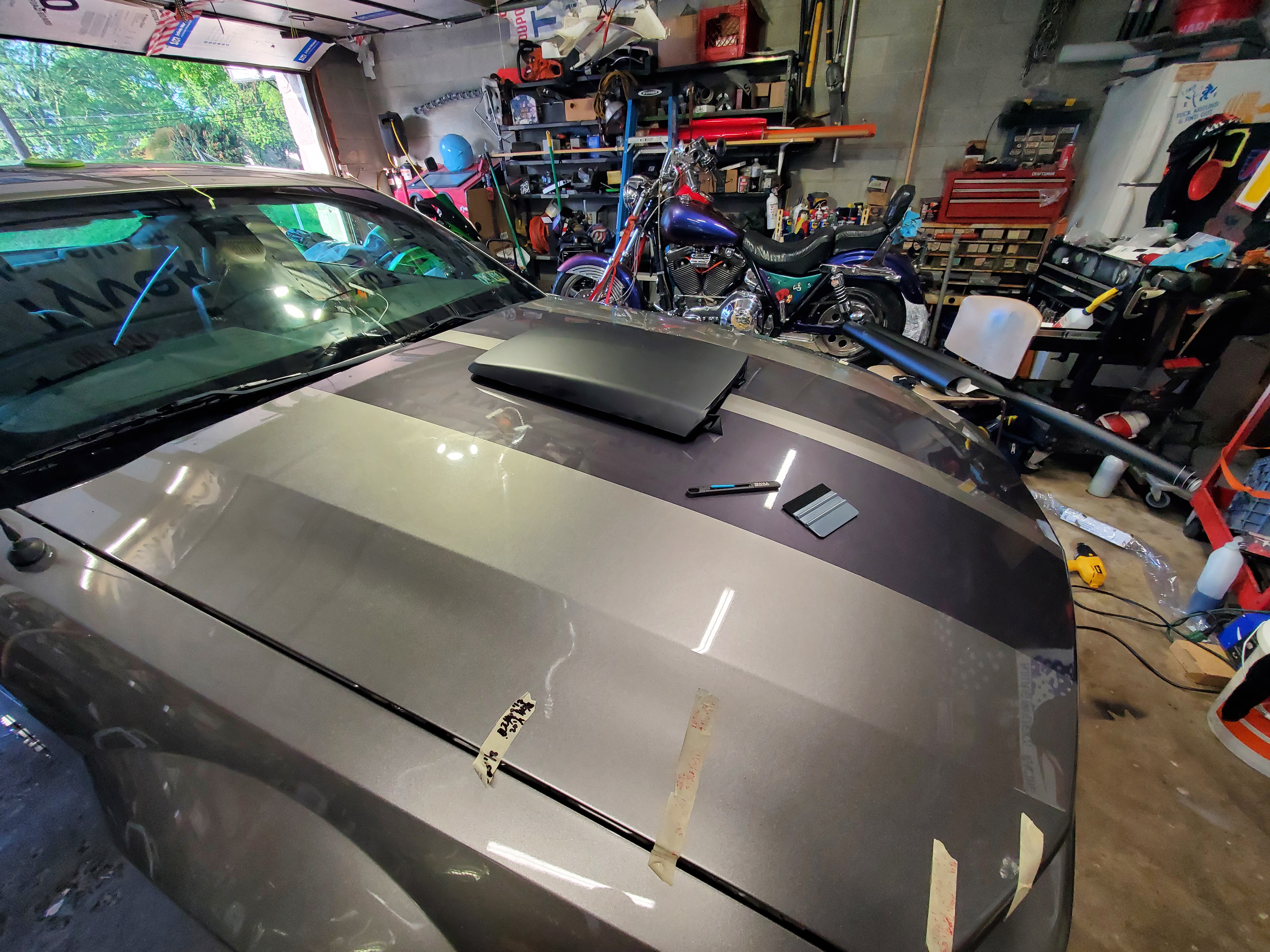

• Racing Stripes: Vvivid Candy Charcoal vinyl - Full length of vehicle
• Hood Scoop: Vvivid Matte Stealth Black vinyl wrap
• Installation Method: Knifeless tape over thin line masking tape for precision

Installation Process

• Planning Phase: Multiple mock layouts to determine optimal stripe placement
• Surface Preparation: Thorough cleaning and decontamination of all surfaces

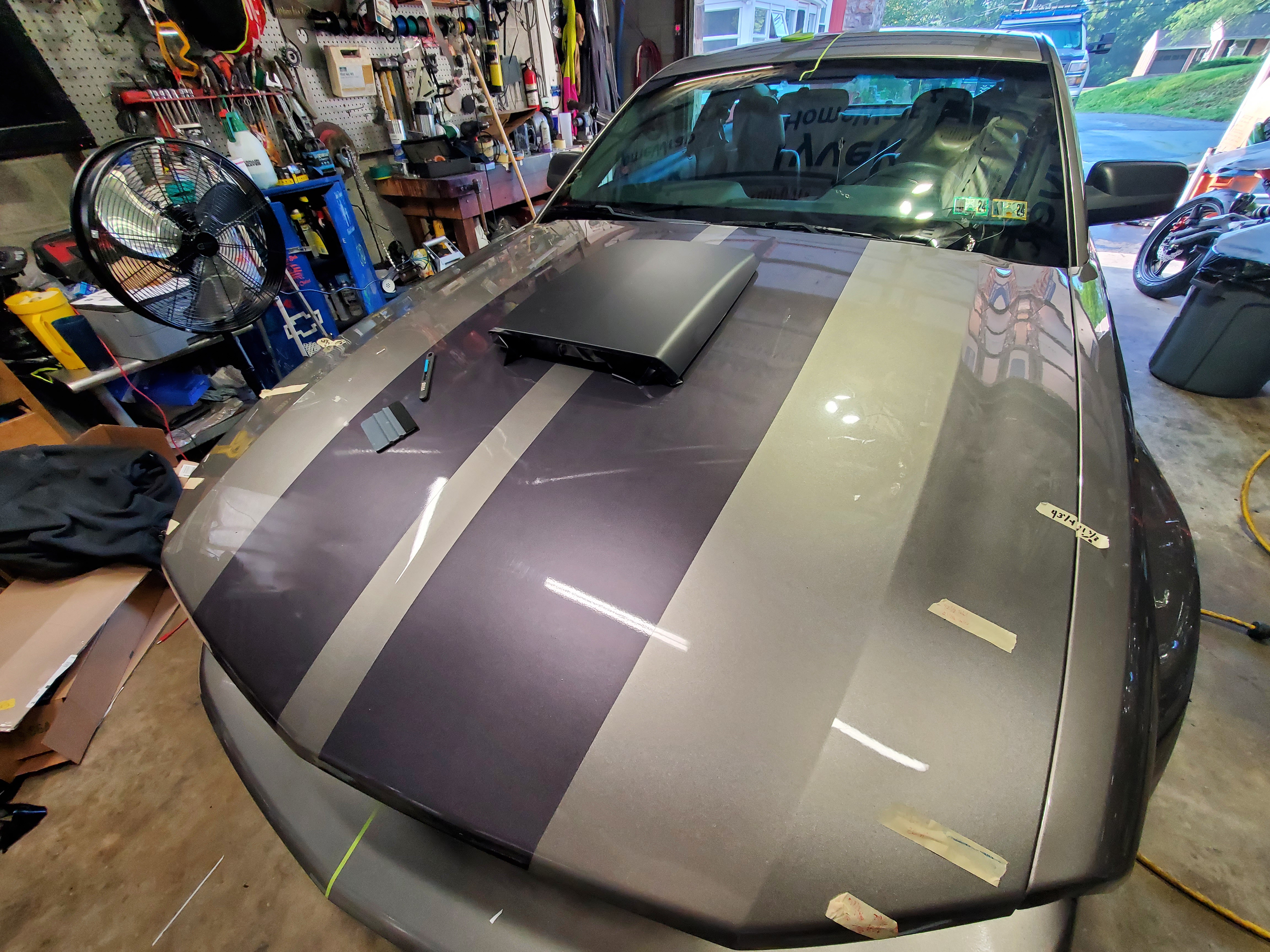

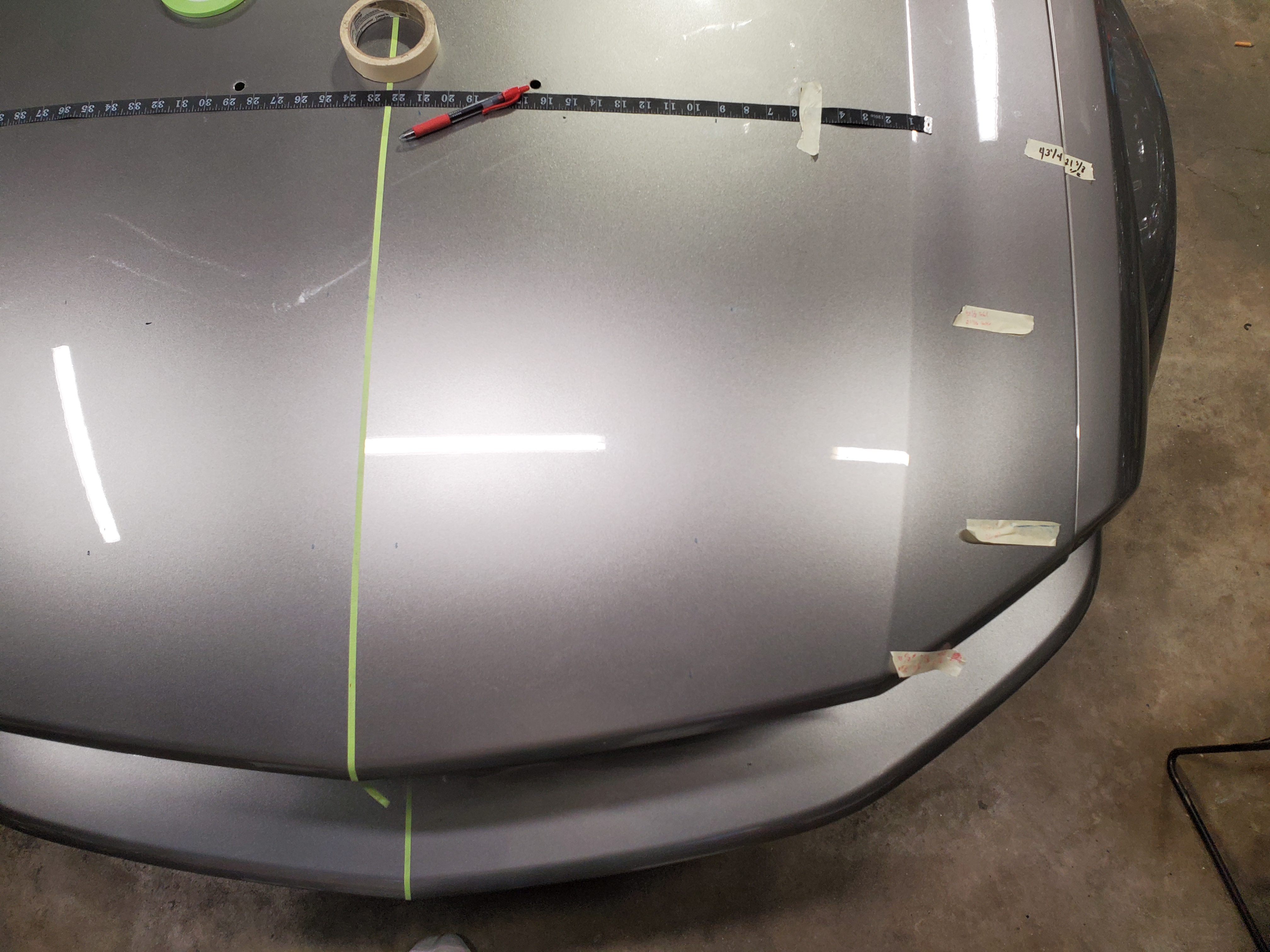

• Precision Masking: Thin line masking tape applied to establish body lines
• Knifeless Tape Application: Laid over masking tape for clean, precise cuts
• Vinyl Application: Candy Charcoal stripes applied with expert technique
• Hood Scoop Wrap: Matte Stealth Black vinyl for contrasting accent
• Final Detailing: Edge sealing and quality inspection

Technical Expertise

The varying widths of the hood, roof, and decklid required us to develop a custom installation approach. By using knifeless tape over our thin line masking tape, we were able to achieve perfectly uniform stripes that maintained the body lines while appearing consistent across all surfaces. This technique ensured clean edges and professional results.
